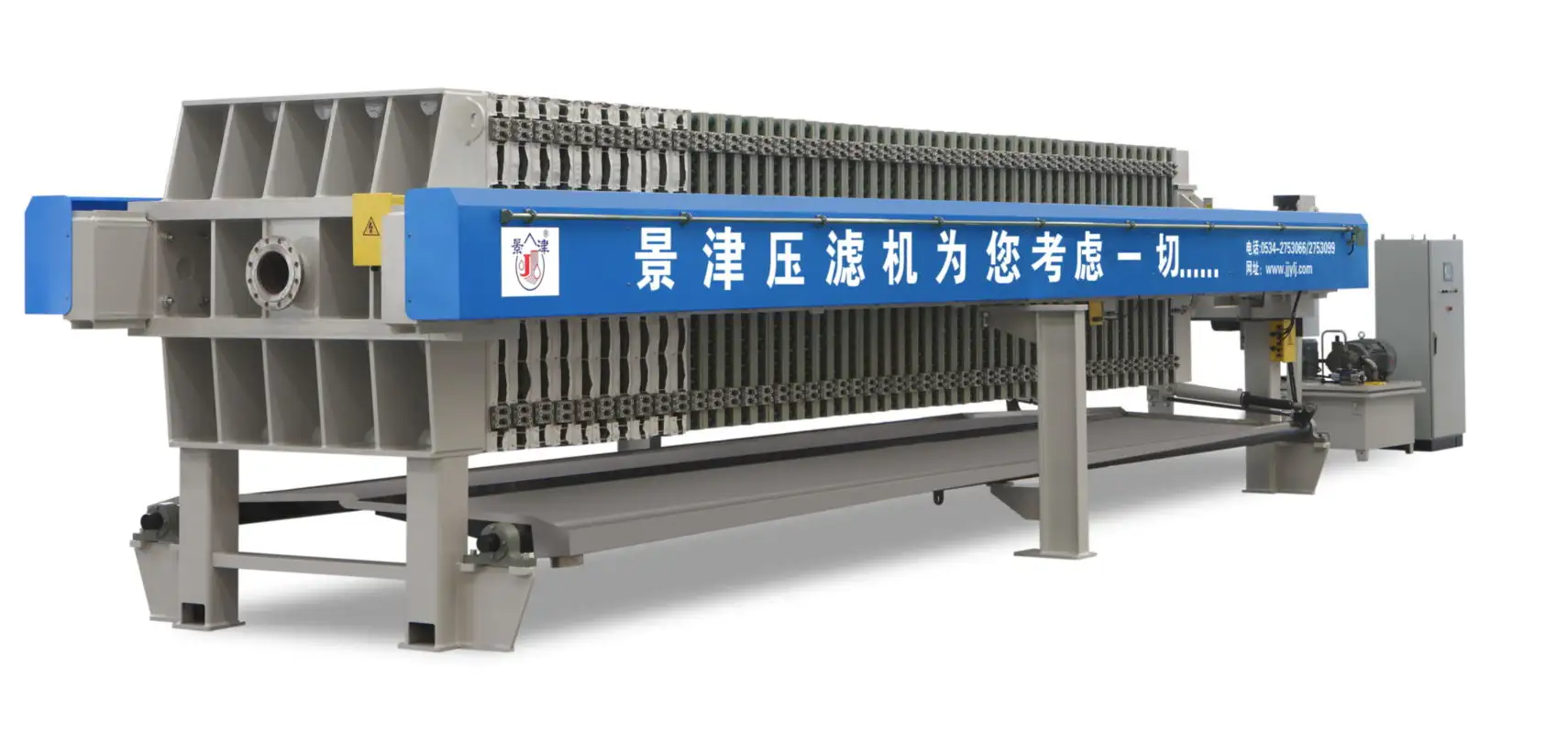

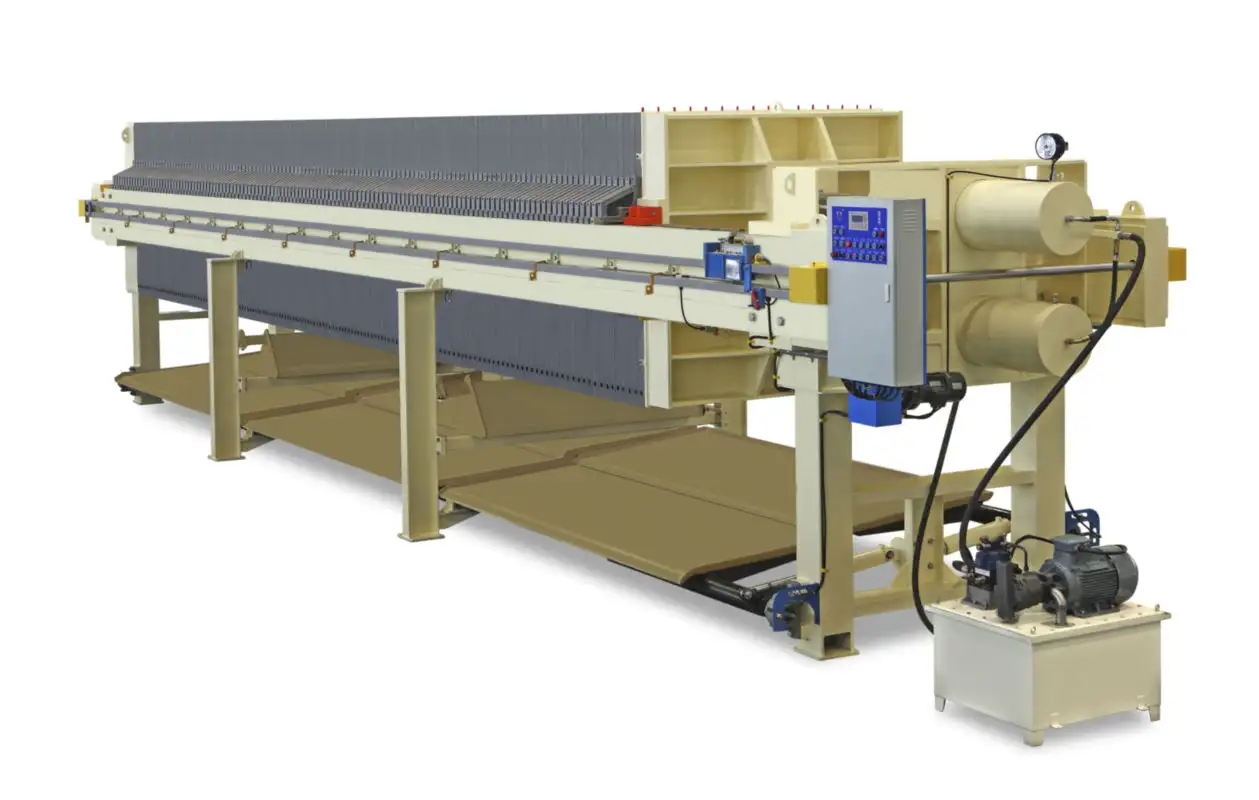

High Pressure Sludge Dryer Filter Press(tympanic Membrane Pressure 100 Kg)

Place of Origin:	Shandong, China
Brand Name:	JINGJIN
Warranty:	12 months

For custom product requirements, please get in touch with us!
The pressing pressure can be freely adjusted between 10-100 kg (the press pump is frequency-controlled).

Contact with us Send email to us

About Jingjin High Pressure Sludge Filter Press

We started researching, developing, and testing the Jingjin High Pressure Sludge Dryer Filter Press in 2009. We finally launched it in the market in 2014. The oil cylinder has a self – locking design. This makes it safer and uses energy more efficiently. With this new design, the filter cake has 20% – 30% less water when working under the same conditions.

We don’t need to add extra fillers. The water content in the sludge filter cake stays at ≤40%, and we use 30% fewer chemicals. The filter press is very useful for different industries. Here are the specific pressing details:

In the titanium dioxide industry, we press yellow mud at 80 kg. The water content in the filter cake is 17% – 18%.
In the soy sauce industry, when we press at 80 kg, the filter cake has a water content of ≤46%.
For municipal sludge, pressing at 85 kg gives a filter cake with 38% – 42% water.
In the flotation tailing coal area, pressing at 55 kg makes the filter cake have 13% – 16% water.

We can change the pressing pressure from 10 – 100 kg. That’s because the press pump is controlled by a frequency converter. The feed pressure can go up to 40 kg.

Applications of High Pressure Sludge Dryer Filter Press

Municipal Wastewater Treatment: We use it to dry out the sludge from municipal wastewater treatment plants. This shrinks the sludge’s volume and makes it easier to dispose of or recycle.
Mining Industry: We use it to handle mineral slurries, make ores more concentrated, and dry out tailings.
Chemical Industry: In chemical production, when we need to filter and dry chemical compounds, we use this.
Food Processing: We use it to separate solids from liquids in food production, like when making starch, sugar, or wine.
Pulp and Paper Industry: We use it for drying processes in pulp making and treating wastewater in paper mills.
Pharmaceutical Industry: During drug manufacturing, we use it to purify and separate pharmaceutical substances.
Environmental Remediation: We use it to clean up polluted sites. It dries out and stabilizes dangerous sludges.

sludge press machine Supply Ability

Supply Ability：10000 Set/Sets per Year

Packaging & Delivery

Packaging Details：seaworthy packing : Big part ,;plastic film winding , fix well in the container . Small part: iron box
Port： customer specified
Lead Time: one month

Technical Advantages

The Jingjin frame is constructed from Q345B material, which boasts a tensile strength 1.4 times greater than that of Q235. This enhancement ensures that the Jingjin filter press operates with increased safety and stability. The oil cylinder seat, pressing plate, and thrust plate are crafted using carbon dioxide shielded welding, ensuring robust construction.

The main beam of the Jingjin filter press features a welded box design and is produced using advanced submerged arc automatic welding technology. For optimal durability, all spare parts requiring painting undergo high-speed centrifugal ball blast descaling and iron scale removal. Following this, a MIO epoxy build primer is applied, and an acrylic polyurethane coating is directly added to ensure superior adhesion. This process not only eliminates the need for hundreds of tons of putty annually, thereby reducing costs and benefiting the environment, but also significantly enhances the paint’s adhesion and the filter press’s anti-corrosion properties.
